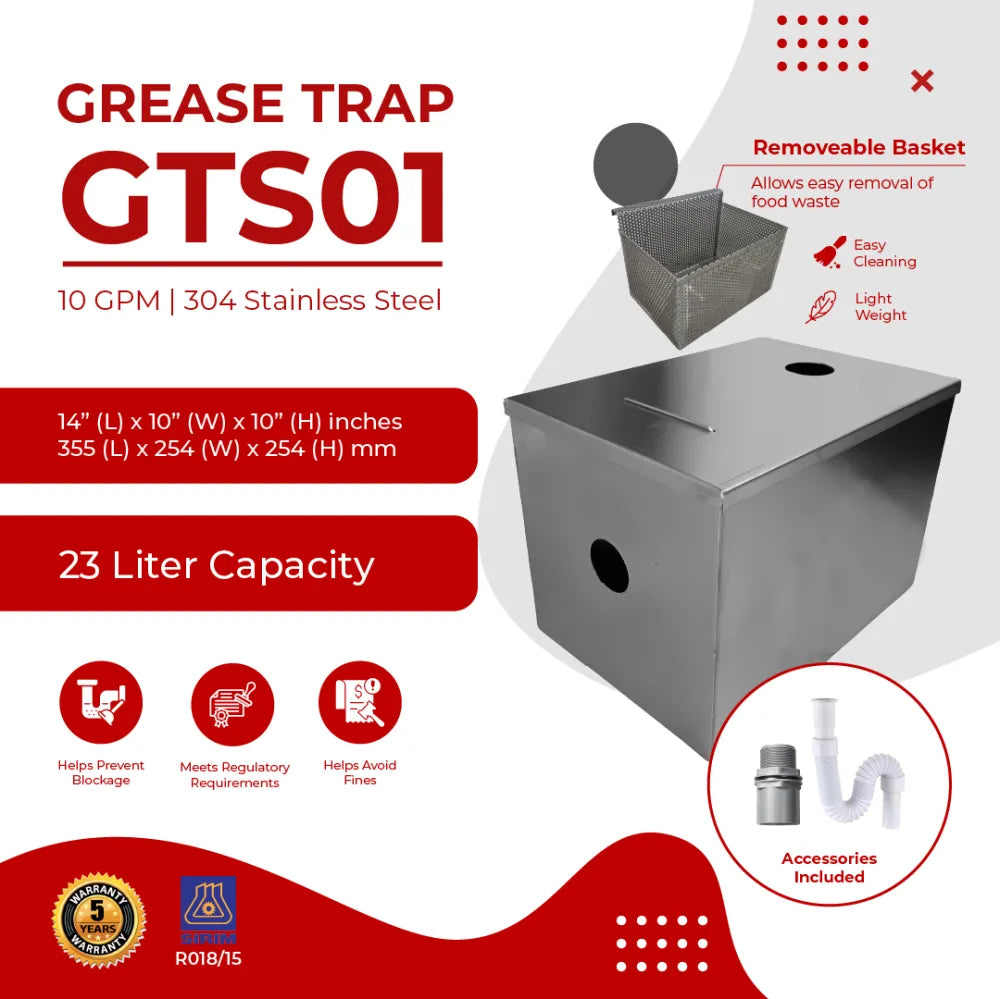

Undersink Grease Trap

An undersink grease trap is a compact commercial kitchen filtration system installed directly beneath wash sinks to trap and separate fats, oils, and grease (FOG) from wastewater before it enters the plumbing drainage. It serves as an essential compliance tool for small-scale food businesses to prevent severe pipe blockages, foul odors, and costly regulatory fines.

Grease Trap Spec:

• Dimension: 14” (L) x 10” (W) x 10” (H) / 35 cm (Length) x 25 cm (Width) x 25 cm (Height)
• Flow Rate: 10 GPM
• Recommended Usage: 20 – 100 meals/day
• Pipe Size: 40 mm
• Maximum Capacity (Overflow): 23 litres
• Material: 304 Stainless Steel
• Accesories: Flexible Hose & Tank Connector

Ideal For: Kopitiam, cafeterias, small restaurants, and undersink installations.

Exclusive Service & Warranty:

• 5+3 Year Factory Warranty: 5-year factory manufacturing warranty paired with an exclusive 3-year GreaseGo warranty.
• On-Site Support: Full on-site warranty service covering structural rust-through or material perforation under normal operating conditions.
• Standard Exclusions: Full protection against natural wear; excludes damage from misuse, physical impact, bending, twisting, or external human error.

Why Choose Undersink Grease Trap GTS01?

• Space-Optimized FOG Capture: Custom-engineered with an ultra-compact footprint to fit neatly underneath standard sinks, making it the definitive choice for space-constrained kopitiams, cafés, and small commercial kitchens needing high-efficiency 10 GPM treatment.
• Industrial Durability with 10-Year Protection Shield: Fabricated from premium, corrosion-resistant 304 stainless steel and supported by a robust 5-year warranty plus an additional 5-year manufacturing warranty, offering long-term operational security for busy kitchens.
• Pre-emptive Regulatory Compliance: Seamlessly separates fats, oils, and grease from wastewater at the source to prevent plumbing blockages, help control foul drainage odors, and confidently safeguard your food business against costly local council fines and environmental violations.
